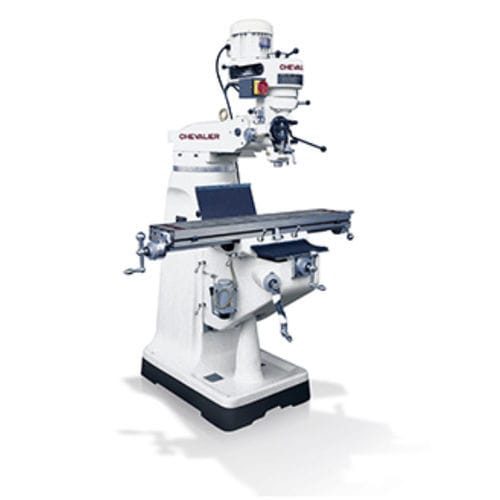

3-axis milling machine FM series

verticalhigh-precisionwith turret

Dynamically Balanced Motor and Ground Pulleys. Chrome-Plated and Bearing Supported Motor Shaft Provides An Extremely Smooth, Low Vibration Quiet Drive. High Precision Spindles Use Class 7 Angular Contact Bearings. Spindle Runout Guar Anteed to be Within 0.00015". The Dovetail and Square Slideways of The Table, Saddle and Column Are Laminated With . Turcite-B, Hardened and Ground For Precise, Smooth And Wear Resistant Movement. The hard chrome quill is ground to mirror finish to ensure smooth movement. Double-nut Mounting of table and saddle lead screws eliminates backlash. One-piece Pinion Gear and Shaft; one-piece worm gear & shaft. Specification Dovetail Ways / Square Ways Step Pulley Head / Vari-Speed Head Table Size: Up to 254 x 1270mm (10"x 50") Spindle taper: R8 or NST30 Quill Travel: 127mm(5”)
