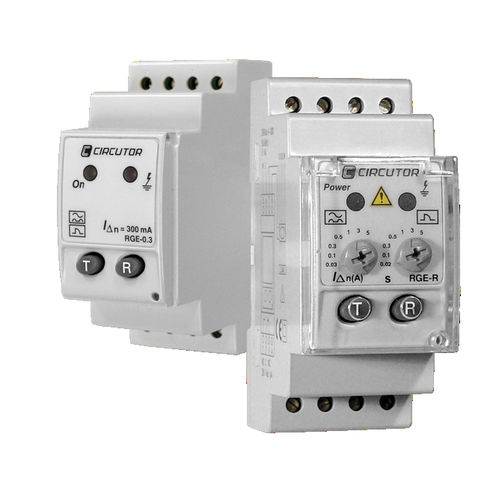

Earth-leakage protection relay RGE series

three-phaseACsingle-phase

Electronic earth leakage protection relay, used to connect to the earth leakage transformers WG / WGC Series These electronic relays offer a high reliability, with the option of a fixed or adjustable sensitivity and delay Type A relay with high frequency current filtering and high immunity. Monitoring of the true root mean square (TRMS) Assembly on DIN rail 46277 Reduced size: 2 modules LED indicators: Permanently lit leak indicator LED: Trigger relay Flashing power LED and lit leak LED: detection of faults in the transformer's continuity Flashing leak LED indicator (only RGE-R and RGE-R1): Leak with a value under the value selected 1 flash every 2 s: 25 ... 50 % of the leakage current 1 flash every 1 s: 50 ... 75 % 2 flashes every 1 s: 75 ... <100 % Permanently: 100 % Applications The relays of the RGE series and the transformer of the WG / WGC series enable a full earth leakage protection for both single and three-phase lines. They guarantee maximum security and continuity of the electrical service, avoiding unwanted tripping.
