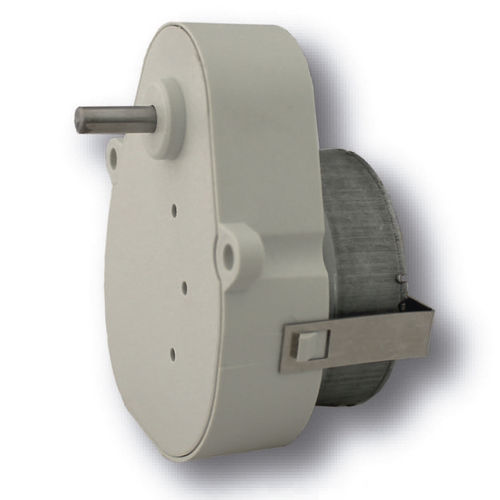

AC electric gearmotor / synchronous / parallel-shaft / gear train
0,017 rpm - 24 rpm, 24 VAC - 230 VAC CLR

Characteristics

  • Motor type:

    AC, synchronous

  • Shaft orientation:

    parallel-shaft

  • Type:

    gear train

  • Other characteristics:

    compact

  • Product applications:

    industrial, for medical equipment, door, for industrial applications, for vehicles, for the food industry, for automobile, for automatic distributors, for lifting applications, for food industry machinery, for pharmaceutical applications, for agitators

  • Torque:

    Min.: 0.026 Nm (0.02 ft.lb)

    Max.: 300 Nm (221.27 ft.lb)

Description

Spur gear
Steel output shaft
Output shaft self-lubricating bearing
Max. permissible radial load, 5 mm from flange: 10 N
Max. permissible axial load: 20 N
Gear material: Pom.
Gear shafts: hardened and ground steel
Polycarbonate housing
Max. operating torque 0,5 N•m.
