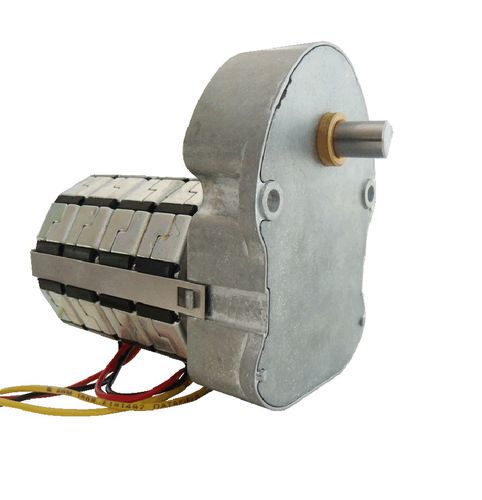

AC electric gearmotor / parallel-shaft / gear train / compact
0.02 rpm - 29 rpm, 24 VAC - 230 VAC CLR

Characteristics

  • Motor type:

    AC

  • Shaft orientation:

    parallel-shaft

  • Type:

    gear train

  • Other characteristics:

    compact

  • Product applications:

    for medical equipment, for industrial applications, for the food industry, for furniture, for food industry machinery, for pharmaceutical applications

  • Torque:

    Min.: 0.05 Nm (0.04 ft.lb)

    Max.: 300 Nm (221.27 ft.lb)

Description

Spur-helicoidal gear.
Steel output shaft.
Output shaft self-lubricating bearing.
Max. permissible radial load, 10 mm from flange: 130 N
Max. permissible axial load: 80 N
Gear material: POM and Steel.
Zamak housing.
Max. operating torque 4 N·m
