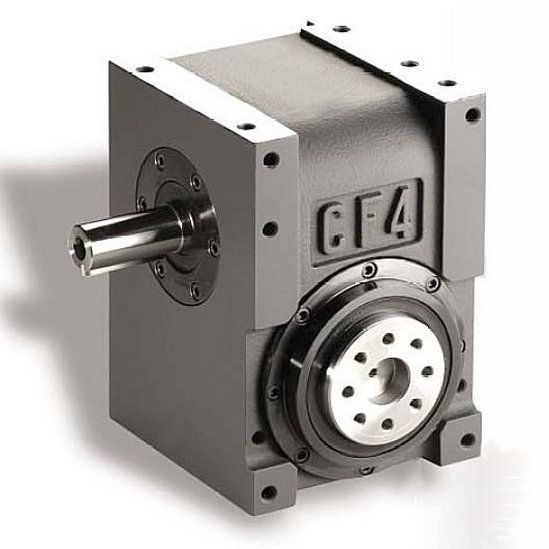

Indexing and oscillating drive with globoidal cam
50 - 315 mm, 30 - 13 000 Nm | CF4
COLOMBO FILIPPETTI
The COLOMBO FILIPPETTI spa CF4 Oscillating drives are globoidal cam mechanisms used to transform the uniform input rotary motion into an output oscillating motion.
The OSCILLATING DRIVES of Colombo Filippetti spa have the excellent features of simple construction and direct transmission of motion according to the most sophisticated mathematical motion laws, to give:
° Precision and repeatability of the positioning;
° Self-locked in station
° Smooth jerk-free movement and silent transmission;
° High load capacity;
° Regular operation at low, medium and high speeds;
° Easy mounting;
° Reduced maintenance;
° Reduced energy consumptions.
