Rotary indexer CF3 series
intermittentface camparallel-shaft

rotary indexer
rotary indexer
rotary indexer
Add to favorites
Compare this product

Characteristics

Motion
rotary, intermittent
Type
face cam, parallel-shaft
Applications
for heavy loads
Other characteristics
cast iron housing

Description

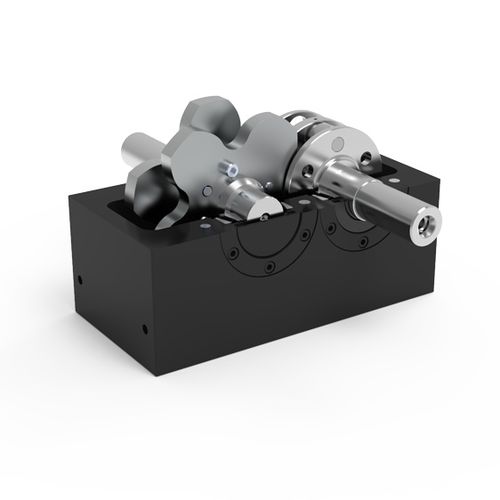

CF3 : paradromic axis indexer TECHNICAL SPECIFICATIONS Standard models:9 Shaft centre distance (mm):40 - 65 - 80 - 105 - 130 - 165 - 200 - 250 - 315 Transmitting torque (Nm):20 to 6.610 Standard no. of stations:1 - 2 - 3 - 4 - 6 - 8 Cam index period:Up to 330° Increments:30° Like other products of COLOMBO FILIPPETTI spa, the mechanism can be manufactured with different motion laws and special cycles, on demand. Description The CF3 drives of COLOMBO FILIPPETTI spa are double flat cam mechanisms with complementary profiles used to transform the uniform input rotary motion into an intermittent motion. Prism-shaped sealed cast iron housing Outer surfaces machined, with support on 6 sides. Possibility of mounting housing in all positions. Parallel hollow shafts in input and output. Roller bearings on opposite taper roller shafts. Oil-bath lubrication. Worm gear reducer splined directly to housing. Precise repeatable index motion. Self locking in dwell and zero backlash. Smooth and shock-free movement Bidirectional sense of motion.
