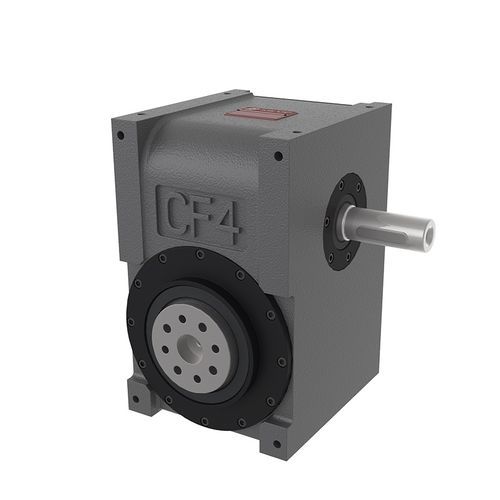

CF4 Indexer with orthogonal axes
Shaft centre distance (mm):50 to 315
Transmitting torque (Nm):30 to 13.000
Standard no. of stations:2 to 24
Cam index period:Up to 330°
The CF4 drives of COLOMBO FILIPPETTI spa are globoidal cam mechanisms used to transform the uniform rotary input motion into an intermitted output motion.
Cuboid shaped; super strong; cast iron housing.
Machined outer faces with mounting holes to 4 sides.
Possibility of mounting unit in any plane.
Input shaft extension dimensions to DIN 748 page 1.
Indexed output shaft with attachment flange.
Shafts located in taper roller bearings.
Lubrication by oil bath or “no maintenance" long life.
Worm gear reducer directly mounted on housing.
