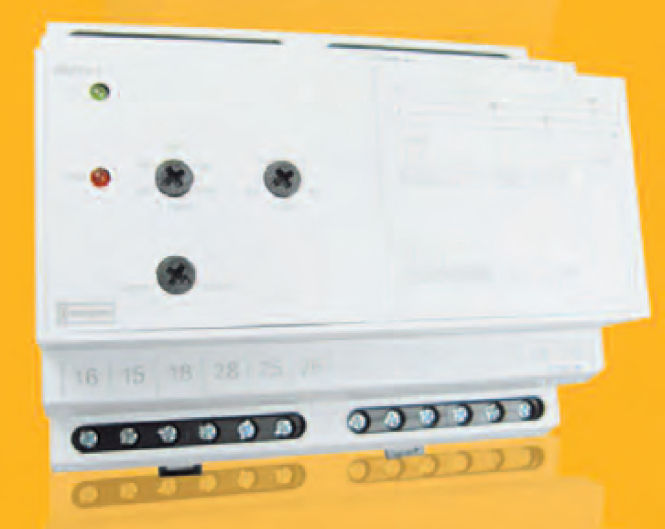

Current measuring and monitoring relay
24 - 240 V, 1 - 5 A | PAD - PAP series
Crompton Instruments
Under and Over Current - PAD
• Single-phase
• Monitors decrease of current under a set level Imin and simultaneously an over
range of current above a set level Imax
• Independently adjustable delay on both over and under set points
• Two output relays
• Three module version
Under or Over Current - PAP/V
• Three-phase, three/four-wire
• Continuously monitors to provide under or over protection (set level In)
• Monitors three-phase current
• Selectable under or over protection
• Six module version
• Single-phase
• Monitors decrease of current under a set level Imin and simultaneously an over
range of current above a set level Imax
• Independently adjustable delay on both over and under set points
• Two output relays
• Three module version
Under or Over Current - PAP/V
• Three-phase, three/four-wire
• Continuously monitors to provide under or over protection (set level In)
• Monitors three-phase current
• Selectable under or over protection
• Six module version
