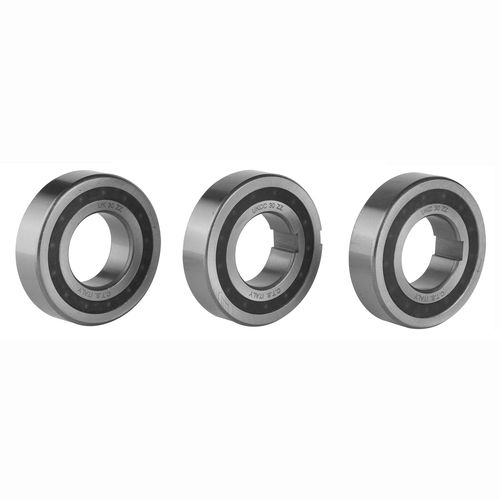

Sprag one-way clutch UK ZZ, UKC ZZ, UKCC ZZ series
bearingindexingbackstop

Add to favorites

Compare this product

Go to the C.T.S. website for more information

Characteristics

Technology

sprag

Construction

bearing

Applications

backstop, overrunning clutch, indexing

Other characteristics

high-speed, irreversible

Torque

Max.: 325 Nm
(239.7077 ft.lb)

Min.: 2.5 Nm
(1.8439 ft.lb)

Diameter

Max.: 40 mm
(1.57 in)

Min.: 8 mm
(0.31 in)

Rotational speed

Max.: 15,000 rpm
(94,247.78 rad.min-1)

Min.: 3,000 rpm
(18,849.56 rad.min-1)

Description

The UK..ZZ series is a freewheel incorporating a 62.. series bearing. The self-centring freewheels are already greaselubricated and come with dust-proof protection For the UK..ZZ model, the transmission occurs by fitting keying with n6 tolerance for shaft and N6 for the seat. The UKC..ZZ model is equipped with a keyway on the inner race and should be fitted on k6 tolerance shafts. Seat fitting must be carried out with N6 keying tolerance. The UKCC..ZZ model is equipped with a keyway on the inner and outer race, the tolerances are h6 for the shaft and H6 for the rigid seat. The UK..ZZ Series is built with a C5 clearance that turns into a normal clearance after keying. The races can be glued to the shaft and the seat. In this case, the clearance remains C5. Working temperature: -10°C +60°C In case of different values please contact us
