Sprag one-way clutch GO series
with internal bearingsindexingbackstop

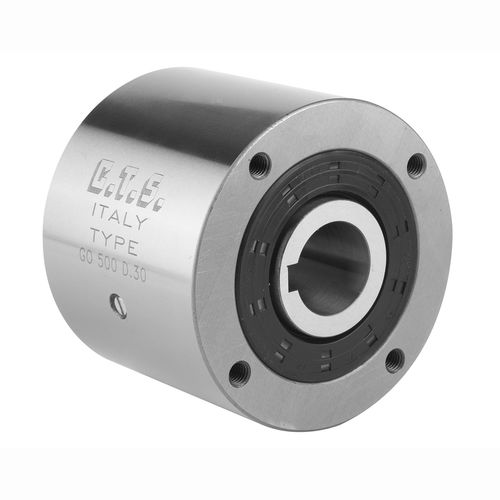

Sprag one-way clutch - GO series - C.T.S. - with internal bearings / indexing / backstop
Sprag one-way clutch - GO series - C.T.S. - with internal bearings / indexing / backstop
Add to favorites
Compare this product
Go to the C.T.S. website for more information

Characteristics

Technology
sprag
Construction
with internal bearings
Applications
backstop, indexing, overrunning clutch
Other characteristics
irreversible, high-speed, self-centering
Torque

320 Nm, 560 Nm, 1,590 Nm, 3,040 Nm, 5,800 Nm
(236.019888 ft.lb, 413.034804 ft.lb, 1,172.723817 ft.lb, 2,242.188934 ft.lb, 4,277.860466 ft.lb)

Diameter

Min.: 20 mm
(0.79 in)

Max.: 181 mm
(7.13 in)

Rotational speed

Min.: 1,600 rpm
(10,053.0965 rad.min-1)

Max.: 3,600 rpm
(22,619.4671 rad.min-1)

Description

The GO type freewheels have contacting parts and are self centering on ball bearings. They have an oil lubricated watertight seal. By adding the suffix GR (GO – GR), they are supplied already greased. By adding the suffix GRL (GO – GRL), they are supplied with a labyrinth seal and already greased. Shaft tolerance must be h6.
