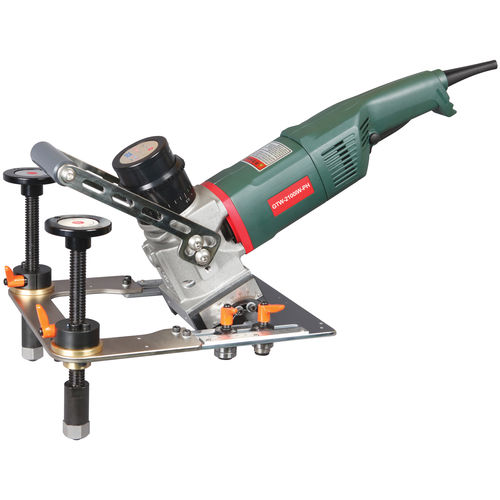

The GTW 2100 IW PH
It is used in weld preparation for dished head of pressure vessel – interior and exterior
Height modification - Single touch spline controller
Fine-tuning increase - minimum 0.1 mm step
Applications - Weld preparation for dished head of pressure vessel – both interior and exterior
Optimal Bevel range per angle 30 ° ~ 90 °
Thickness, mm (inch) Width, mm (inch)
30 ° 23 mm (0.905) 26.5 mm (1.043)
45 ° 15 mm (0.591) 22 mm (0.866)
75 ° 3.2 mm (0.126) 12.5 mm (0.492)
90 ° 11.5 mm (0.453) 12.5 mm (0.492)
Diameter min.500A
Deepness min. 70mm ~ max. 450mm
