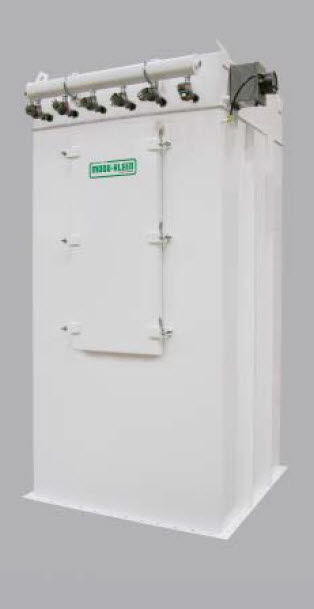

Cartridge dust collector Modu-Kleen™ 250 series

mechanical shaker cleaning

Vent and Collect Dust in Any Contained Vessel The Modu-Kleen bin vent/dust collector is designed to vent bins, storage silos, mixers, blenders, pneumatic conveying systems of any type, or any other device or process that must contain or control dust particles. It can meet the most stringent air pollution codes. The Modu-Kleen bin vent/dust collector is controlled by solid state electronics, and is self-cleaning for minimum maintenance. Cone Jet Diffuser Improves Filter Efficiency Built as an integral part of the bag cage, the cone jet diffuser directs a shock wave of air down the entire length of the bag during the cleaning cycle. This shock wave improves the Modu-Kleen bin vent/dust collector's efficiency when compared to other venturi type dust collectors that direct the shock wave over only a portion of the bag. The filter bags are cleaned one row at a time, so the Modu-Kleen bin vent/dust collector Series 250 can operate continuously. There is no need to shut down for cleaning. Features Standard or quick release bag clamps Solid state sequencing timer Safety grid Heavy-duty, all welded construction Easy installation of bags and cages Cone jet diffuser provides 100% bag utilization 99% + efficiency Uses standard available compressed air High air to cloth ratio Low maintenance
