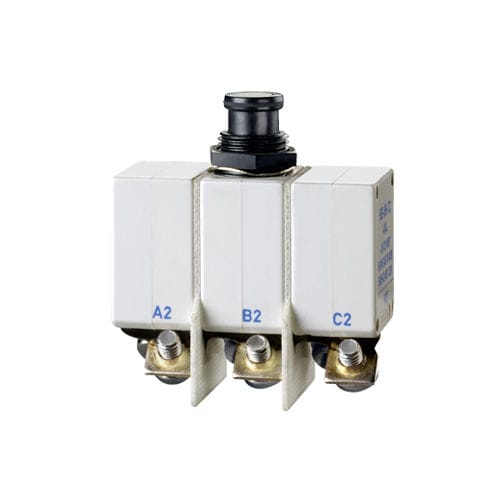

Thermal circuit breaker 583 seriestripolarmanual reset
Add to favorites
Compare this product
Characteristics
- Type
- thermal
- Electrical characteristics
- tripolar
- Operating mode
- manual reset
- Primary current
Min.: 1 A
Max.: 30 A
- VAC
200 V
- VDC
28 V
Description
Three pole, miniaturised, aircraft style thermal circuit breaker with tease-free, trip-free, snap action mechanism and push/pull on/off manual actuation (M-type TO CBE to EN 60934). An indicator band on the push button clearly shows the tripped/off position. Threadneck panel mounted, available in metric and US (AS 14154) configurations. Advanced two-chamber design minimises contact contamination to provide fail-safe operation. Temperature compensated with optional auxiliary contacts, and fully approved for use on a wide range of aircraft and equipment.
For single pole version see type 483.
