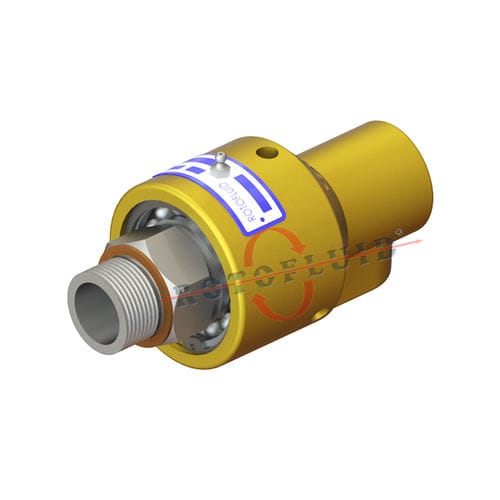

Water rotary joint 400 series

for hot oilfor steamfor vacuum

400 Series General Purpose Rotary Joints Medium: Water, Steam, Hot Oil, Pneumatic, Vacuum Size: 1/4″ (DN08) – 2″ (DN50) – Self supported rotary joint – Single and dual flow models – Radial housing connection – Balanced mechanical seals – Easy and quick replacement of seals – Reliable usage with poor water quality – Forged brass housing – Stainless steel internal parts – Vent holes on housing Special Options: – Threaded vent holes – Nickel plated housing – Stainless steel ball bearings – Consult factory for special applications Max. Water Pressure: 50 bar (750 psi) Max. Water Temperature: 160ºC (320ºF) Max. Steam Pressure: 1 bar (14 psi) Max. Steam Temperature: 120ºC (250ºF) Max. Hot Oil Pressure: 7 bar (100 psi) Max. Hot Oil Temperature: 160ºC (320ºF) Max. Speed (1/4″-3/4″): 3,500 RPM (3,500 minˉ¹) (1″): 3,000 RPM (3,000 minˉ¹) (1 1/4″ – 1 1/2″): 2,500 RPM (2,500 minˉ¹) (2″): 750 RPM (750 minˉ¹) Do not work with max. pressure at max. speed.
