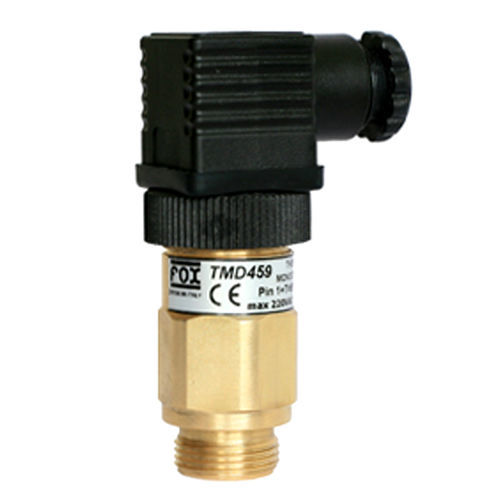

Preset thermostat TMD4 brassIP65
Add to favorites
Compare this product
Characteristics
- Type
- preset
- Material
- brass
- Protection level
- IP65
- Temperature
Min.: -20 °C
(-4 °F)Max.: 120 °C
(248 °F)- Switching power: current
5 A, 10 A, 15 A
- Switching power : voltage
12 V, 24 V, 125 V, 220 V
Description
Fixed hysteresis value: ~ 8 °C of the setting value
Switching accuracy: ± 3.5 °C
Max temperature gradient: 1°C/min
Weight: 0.07 Kg
Body: in brass hexagonal, KEY27 with integral seal DIN
Electrical Features:
- Electric connection according to DIN43650, M3
- Electric protection according to CEI EN 60529, IP65
Warranty: see dedicated page
Spare parts: see dedicated page
Available:
- Special electrical connection
- Special value of hysteresis
- CU-TR for Russian market
- Different setting temperatures values
