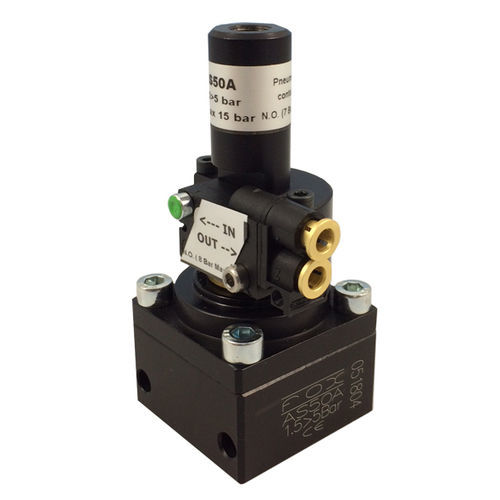

Piston pressure switch AS5 SeriesdiaphragmNCfor air
Add to favorites
Compare this product
Characteristics
- Technology
- diaphragm, piston
- Contact type
- NC
- Fluid
- for air
- Applications
- for pneumatic applications
- Other characteristics
- adjustable, high-pressure, low-pressure
- Pressure range
Max.: 600 bar
(8,702.26 psi)Min.: 1.5 bar
(21.76 psi)- Process temperature
Max.: 60 °C
(140 °F)Min.: 0 °C
(32 °F)
Description
Switching accuracy: ±3% of the end of scale at 20°C
Fixed hysteresis value: ~15% of the end of scale at 20°C
Switching frequency: 30 cycles/min
Body : 40x40 mm square in anodized aluminium
Weight: AS50-51 à 0,2kg / AS53 to 59 à 0,35kg
Mechanical life: 106 cycles at 20°C
Pneumatic characteristics :
- Fluid admitted : air, supply max pressure 8 bar
- Simple contact (NA or NC)
Warranty: see dedicated page
Also Available:
- Special max pressure
- Special electrical connection
- Special value of hysteresis
- CU-TR for Russian market
