Electronic pressure switch KD
SPDTIP65adjustable

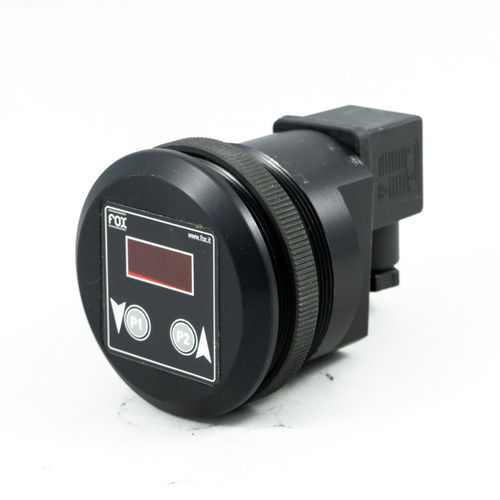

Electronic pressure switch - KD - Fox S.r.l. - SPDT / IP65 / adjustable
Electronic pressure switch - KD - Fox S.r.l. - SPDT / IP65 / adjustable
Electronic pressure switch - KD - Fox S.r.l. - SPDT / IP65 / adjustable - image - 2
Electronic pressure switch - KD - Fox S.r.l. - SPDT / IP65 / adjustable - image - 3
Electronic pressure switch - KD - Fox S.r.l. - SPDT / IP65 / adjustable - image - 4
Electronic pressure switch - KD - Fox S.r.l. - SPDT / IP65 / adjustable - image - 5
Electronic pressure switch - KD - Fox S.r.l. - SPDT / IP65 / adjustable - image - 6
Add to favorites
Compare this product

Characteristics

Technology
electronic
Contact type
SPDT
Protection level
IP65
Other characteristics
adjustable, with digital display
Pressure range

Min.: 0 bar
(0 psi)

Max.: 600 bar
(8,702.26 psi)

Switching power: current

0.5 A

Process temperature

Min.: -20 °C
(-4 °F)

Max.: 70 °C
(158 °F)

Description

echanical life: 2 x 106cicli a 20° Body: anodized aluminium Installation: at panel with hole of 68mm Max dimension: quadrant Æ 68mm, depth 70mm, 0,13 Kg Electric Features: - Linearization: 9 control points - Decimal point: programmable - Visualization: from –999 to + 9999 - Maximum contact load: 0,5 A - Electric connection according to DIN43650, 2 x M2 - Electric connection according to IEC60947-5-2, M12 - Electric protection according to CEI EN 60529, IP65 - Medium consumption: <50 mA - Power supply: from 10 to 30 VDC - Interference emission and immunity according to EN 61.326 Technical features ATR142: Body: ABS Installation: at panel, dimension 72mm x 36mm, depth 60mm, 0,07 Kg Electric Features: - Decimal point: programmable - Visualization: from 0 to + 9999 - N°2 contacts SPDT and SSR output alarm Warranty: see dedicated page Spare parts: see dedicated page Also available: - CU-TR for Russian market
