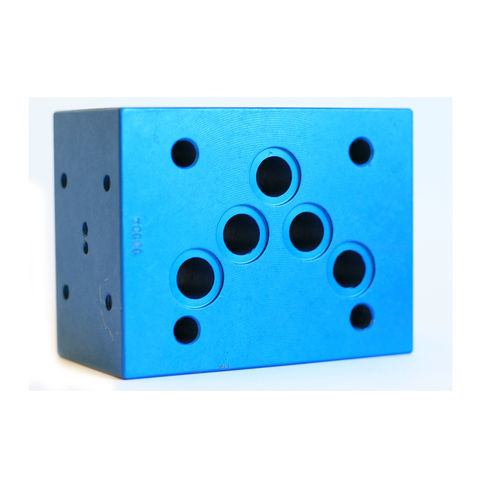

Multi-channel manifold B6-B10-K5RID-K7RID anodized aluminumfor pressure measurement devices
Add to favorites
Compare this product
Characteristics
- Number of channels
- multi-channel
- Material
- anodized aluminum
- Applications
- for pressure measurement devices
- Operating pressure
350 bar
(5,076 psi)- Port size
6 mm, 10 mm
(0.24 in, 0.39 in)
Description
The main feature of the plates B6 and B10 is to allow a single execution the connection between the pressure type K5 choice of all the pressure taps A, B and P.
Material: anodized aluminum
Maximum working pressure: 350 bar
Standard equipment:
- Screws to fix the pressure switch
- Dowel to close the unused pressure ports
- O-ring seal
Dimensions:
- B6 - 100x45x44 mm
- B10 -> 90x70x50 mm
Weight:
- B6 - 0.37 kg
- B10 - 0.8 kg
Technical features K7RID:
Material: zinc-plated carbon Steel
Maximum working pressure: 400 bar
Standard equipment:
- socket head screws M4x16
- O-ring seal
Weight: 0.07 kg
