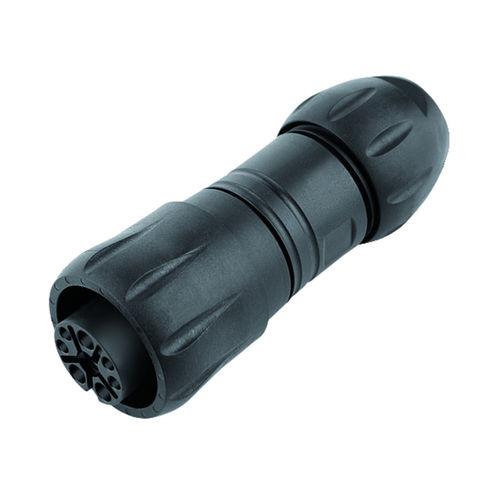

Data connector 696 series electrical power supplyDINcircular
Add to favorites
Compare this product
Characteristics
- Type
- data, electrical power supply
- Format
- DIN
- Shape
- circular
- Connection type
- female, bayonet
- Electrical characteristics
- power
- Material
- polyamide
- Protection class
- IP68, IP69K
- Primary current
3 A, 5 A, 20 A, 25 A
- Voltage
60 V, 250 V, 400 V
Description
Bayonet HEC Female cable connector, Contacts: 4+3+PE, 7.0-17.0 mm, unshielded, crimping (Crimp contacts must be ordered separately), IP68/IP69K, UL, VDE
Connector design - Female cable connector
Version - Connector socket straight
Connector locking system - Bayonet
Termination - crimping (Crimp contacts must be ordered separately)
Degree of protection - IP68/IP69K
Cross-sectional area - see crimp contacts under accessories
Cable outlet - 7.0-17.0 mm
Temperature range from/to - -40 °C / 100 °C
Tightening torque sleeve - 2.0 Nm
Tightening torque pressing screw - 2.5 Nm
Mechanical operation - > 1000 Mating cycles
Weight (g) - 57.88
Customs tariff number - 85369010
