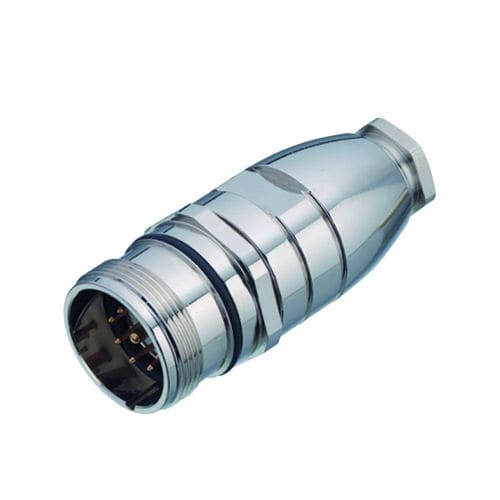

Electrical power supply connector 623 seriesDINcircularmale
Add to favorites
Compare this product
Characteristics
- Type
- electrical power supply
- Format
- DIN
- Shape
- circular
- Connection type
- male
- Size
- M23
- Electrical characteristics
- power
- Material
- polyamide, PBT
- Protection class
- IP67
- Primary current
8 A, 10 A, 20 A
- Voltage
150 V, 300 V
Description
Connector locking systembolted
Terminationsolder
Arrangement of contactsclockwise
Wire gauge (mm)2,50 mm²
Wire gauge (AWG)14
Cable outlet6,0 - 10,0 mm
Degree of protectionIP67
Mechanical operation> 50 Mating cycles
Upper limit temperature125 °C
Lower limit temperature-20 °C
Rated impulse voltage2500 V
Pollution degree3
Overvoltage categoryII
Insulating material groupIII
Volume resistivity≤ 3 mΩ
Insulation resistance≥ 10¹⁰Ω
Contact materialCuZn (brass)
Contact platingAu (gold)
Contact body materialPBT/PA66
Customs tariff number85369010
Weight (g)85
