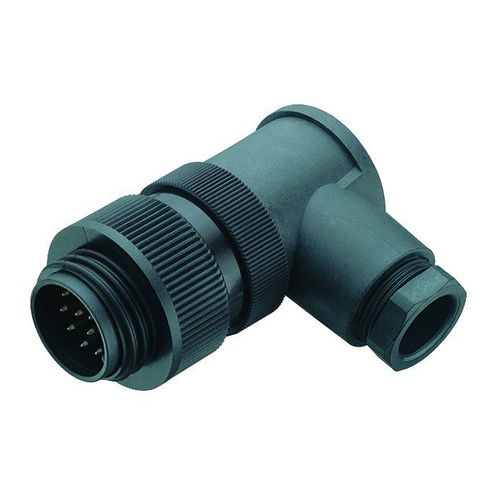

Electrical power supply connector 694 serieselbowcircularfemale
Add to favorites
Compare this product
Characteristics
- Type
- electrical power supply
- Shape
- elbow, circular
- Connection type
- female
- Electrical characteristics
- power
- Material
- polyamide
- Protection class
- IP65
- Primary current
3 A, 6 A, 20 A
- Voltage
125 V, 250 V, 400 V
Description
RD30 Male angled connector, Contacts: 12+PE, 10.0-12.0 mm, unshielded, solder, IP65
Connector design - Male angled connector
Version - Connector pin angled
Connector locking system - screw
Termination - solder
Degree of protection - IP65
Cross-sectional area - max. 1.00 mm² / AWG 17
Cable outlet - 10.0-12.0 mm
Twistability - 45° (8 coding options)
Temperature range from/to - -40 °C / 100 °C
Tightening torque pressing screw - 1.25 Nm
Mechanical operation - > 500 Mating cycles
Weight (g) - 78.18
Customs tariff number - 85369010
