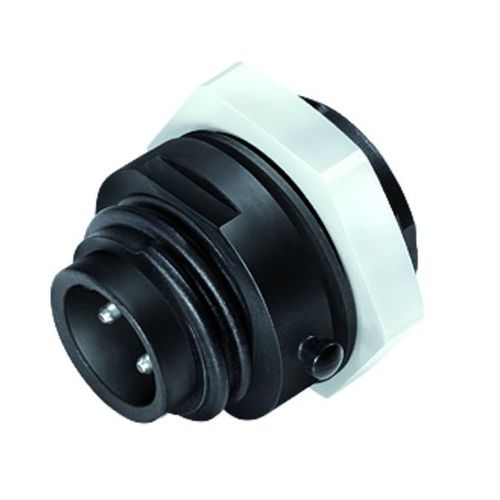

electrical power supply connector / circular / male / screw-locked
692/693 series Franz Binder GmbH + Co. Elektrische Bauelemente KG

{{requestButtons}}

Characteristics

  • Type:

    electrical power supply

  • Shape:

    circular

  • Connection type:

    male, screw-locked

  • Electrical characteristics:

    power

  • Material:

    PBT

  • Other characteristics:

    panel-mount, IP67

  • Current:

    12 A, 16 A

  • Voltage:

    400 V, 600 V

Description

Connector locking systembolted
Terminationscrew clamp
Wire gauge (mm)max. 2,5 mm²
Wire gauge (AWG)max. 14
Degree of protectionIP67
Mechanical operation> 500 Mating cycles
Upper limit temperature100 °C
Lower limit temperature-40 °C
Rated impulse voltage6000 V
Pollution degree3
Overvoltage categoryIII
Insulating material groupIII
Volume resistivity≤ 5 mΩ
Insulation resistance≥ 10¹⁰Ω
Contact materialCuZn (brass)
Contact platingAg (silver)
Contact body materialPBT
Approval 1UL
Approval 2ESTI+
Approval 3VDE
Customs tariff number85369010
Weight (g)21.175
