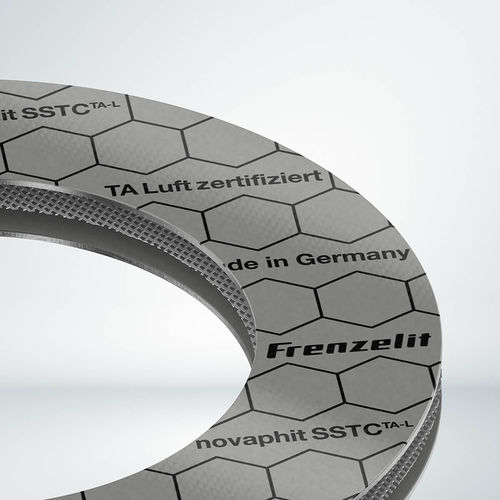

Metal gasket sheet novaphit® SSTCTA-L

steelgraphiteexpanded graphite

High-quality graphite gasket in terms of TA Luft Like novaphit® SSTC, novaphit® SSTCTA-L is made from high-quality expanded graphite with a purity level of at least 99% and has an expanded metal insert made from acid-resistant chrome-nickel steel (1.4404, AISI 316 L). novaphit® SSTCTA-L also has internal impregnation, which reduces the leakage level of the gasket to an even greater degree. novaphit® SSTCTA-L was tested according to the test criteria of VDI 2440 and/or VDI 2200 for TA Luft. The result: The gasket easily satisfies the TA Luft tightness criterion is below this and is thus considered “high-quality” in terms of TA Luft. The gasket therefore makes a valuable contribution towards environmental protection. Thanks to its superior performance, novaphit® SSTCTA-L makes it possible to produce gasket connections in compliance with the strict criteria of TA Luft and VDI 2290. Comprehensive gasket parameters pursuant to DIN EN 13555 enable effective designs according to DIN EN 1591-1. novaphit® SSTCTA-L can be used as an all-round standard gasket in a broad range of plant applications and is optionally available with XP technology.
