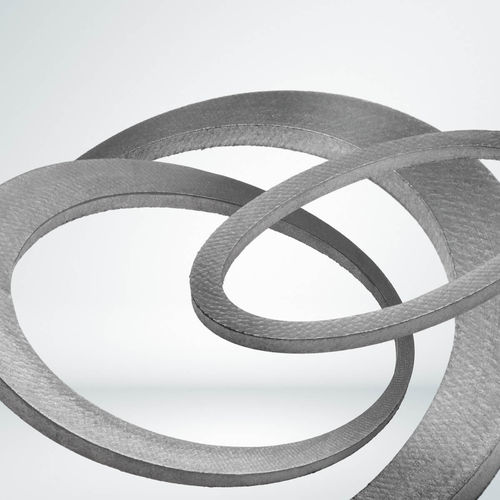

Flat gasket novaSEAL® OVroundcoatedfabric
Add to favorites
Compare this product
Characteristics
- Type
- flat
- Configuration
- round
- Material
- coated
- Application
- fabric
- Other characteristics
- chemical-resistant
- Temperature limit
225 °C
(437 °F)- Pressure limit
25 bar
(362.6 psi)- Diameter
Max.: 350 mm
(13.78 in)Min.: 80 mm
(3.15 in)- Outer diameter
Max.: 450 mm
(17.717 in)Min.: 120 mm
(4.724 in)
Description
novaSEAL® OV is a gasket material that consists of a temperature, corrosion and chemical-resistant high-performance woven fabric designed specifically for test class C (225 °C and 25 bar pressure). A specially developed manufacturing process is used to make continuous, dimensionally stable and true to scale rings from a coated woven fabric.
Type-test approval according to TÜV test class C
