spur gear reducer / orthogonal / for aerial cable applications
Galbiati Group S.r.l.

{{requestButtons}}

Characteristics

  • Type:

    spur

  • Shaft orientation:

    orthogonal

  • Other characteristics:

    for aerial cable applications

  • Torque:

    Max.: 900,000 Nm (663,805.9343 ft.lb)

    Min.: 80,000 Nm (59,004.9719 ft.lb)

  • Rotational speed:

    11.3 rpm (71 rad.min-1)

  • Power:

    480 kW (652.62 hp)

Description

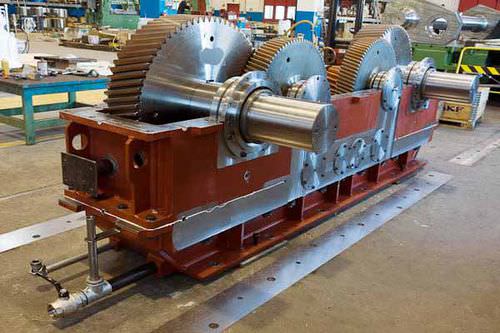

Gearboxes for cable way, cable car, chair lift, and cable railway winches“Bigo”, Genoa, Panoramic Elevator Winch main drive.Galbiati Group designs and manufactures gear drives for cable way applications with output torque from 80 kNm to over 900 kNm for cable car, chair lift, cable way, and cable railway winches. Sizing, inspection, and certification meet the current regulatory requirements for public transport safety.Hoisting gearboxes are used in a number of applications: blondins, harbor cranes, marine winches, and special winches.See following the winch drive installed on the panoramic elevator, “Bigo”, in Genoa, manufactured for Kone S.p.A. Italia to update and meet the new safety regulations. Winch drive, sized with high service factor, nominal power 480 kW at 11.3 rpm. NiCrMo carburized gears high-quality tooth profile ground.
