mobile crane / telescopic / articulated / for construction

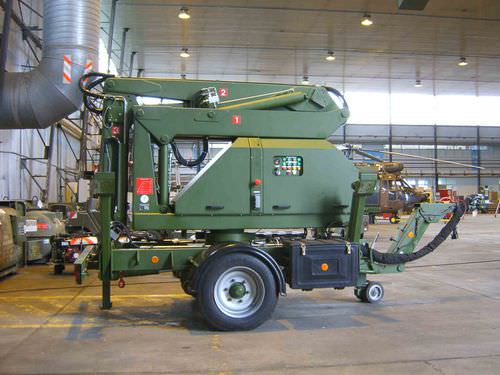

MINIDREL 35 SR Gruniverpal S.r.l.

{{requestButtons}}

Characteristics

  • Configuration:

    mobile

  • Structure:

    telescopic, articulated

  • Operating environment:

    for construction

  • Lift capacity:

    1,000 kg (2,205 lb)

  • Working height:

    10 m (32'09")

Description

The Gruniverpal Tranchero MINIDREL B Series is basically a mobile crane with capacity from 4000 Kg up to 25000 Kg. The unit offers extraordinary features like extensive load capacities with compact dimensions, electric or auxiliary engine power, exceptional working reach, precision and handling ease, slewing boom right/left with 180° rotation , hydraulic control (TR versions), maximum drive power guarantee, motorized propeller unit, adjustable speed, long battery life and very less maintenance cost.

The construction of the unit includes hydraulic control carriage and a servo assisted translation, lifting, extraction and steering. It also offer proportional speed regulator, controlled deceleration, maximum safety with anti tilting controls. It can be optionally equipped with electro hydraulic winch, automatic wheel load divider, button panel remote control, programmable joystick radio control, etc.

It comes in 6 different models like 50B, 75B, 90B, 125B, 150B, 250B with a capacity varying between 5000 KG to 25000 KG and a lifting height of 850 m to 1000 m. The telephonic extension varies between 570 m to 750 m, width between 135 m to 230 m and a wheel base of 280 m to 325 m.
