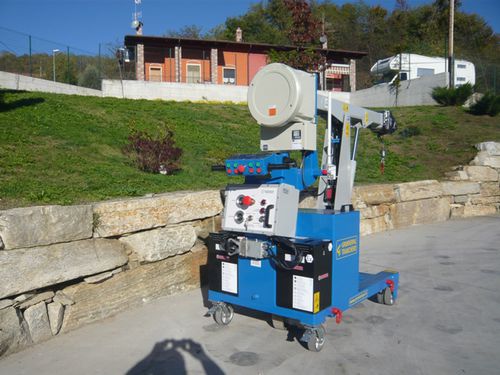

Mobile crane GB 300

boomtelescopicself-erecting

Maximum load capacity 300 Kg Standard min. hook's height from the ground 200 mm Standard max. hook's height from the ground 3.200 mm Possibility to extend height up to (option) Standard max. telescopic extension 1.960 mm Capacity at standard max. telescopic extension 180 Kg Possibility to extend telecopic extension up to (option) Capacity at max.telescopic extension (point 7) Rotation (option) 150° Wheelbase 1.000 mm Dimensions- lenght 1.400 mm Dimensions- width 820 mm Dimensions- height 1.600 mm Adjustable speed from / to From 0 to 40 m/min Max. surmountable slope ( unloaded ) 8% Max. surmountable slope ( loaded ) 3% Front wheels 4 x Ø 160 x 60 mm Rear driving wheel 1 x Ø 160 x 80 mm Wheels material Polyurethane Drive REAR WHEEL Total weight: 950 Kg Electric motor power 1,0 KW / 12 V. Hardened battery (standard) 200 Ah / 12 V Battery charger on board 110 / 240 V -50/60 Hz Lead acid battery
