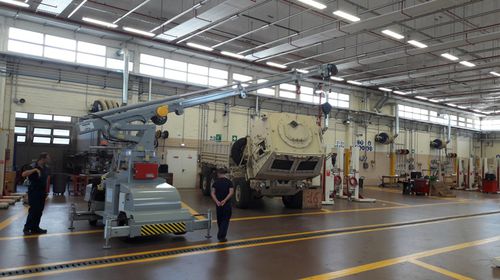

Mobile crane MINIDREL 75B TRS
boomtelescopicarticulated

mobile crane
mobile crane
mobile crane
mobile crane
mobile crane
mobile crane
mobile crane
mobile crane
mobile crane
mobile crane
mobile crane
mobile crane
mobile crane
mobile crane
mobile crane
mobile crane
mobile crane
mobile crane
mobile crane
Add to favorites
Compare this product


Characteristics

Configuration
mobile
Structure
boom, telescopic, articulated
Operating environment
for construction, all-terrain, rough terrain, harbor, for offshore applications, for mining applications, for railway applications, for the recycling industry, underground
Applications
for handling waste and scrap metal, handling, for heavy-duty applications, for the recycling industry, loading, drum-handling, lifting, unloading, for hazardous environments, materials handling, mold handling, for industrial applications, transport
Other characteristics
electric, hydraulic, compact, height-adjustable, light, electro-hydraulic, balanced, military
Lift capacity

7,500 kg (16,535 lb)

Min.: 1 kg (2 lb)

Max.: 7,500 kg (16,535 lb)

Working height

10.5 m (34'05")

Min.: 0 m (0'00")

Max.: 10 m (32'09")

Description

Mobile Cranes with cpacity up to 25.000 Kg Lifting capacity of up to 40% more than traditional cranes of equal size. The mobile cranes Gruniverpal are suitable for indoor and outdoor use in both civil and industrial environments. Precision handling of these crawler cranes series is assured, even in restricted areas, thanks to the rotating boom with 220 degree to the left and right as well as the hydraulic controls. Special long-life batteries and competitive maintenance costs ensure a long life of the products. Maximum load capacity 7.500 Kg Standard min. hook's height from the ground 1.200 mm Standard max. hook's height from the ground 7.500 mm Possibility to extend height up to (option) 8.500 mm Standard max. telescopic extension 4.500 mm Capacity at standard max. telescopic extension 1.500 Kg Possibility to extend telecopic extension up to (option) 5.500 mm Capacity at max.telescopic extension (point 7) 1.000 Kg Rotation (option) 190° Wheelbase 2.500 mm Dimensions- lenght 3.450 mm Dimensions- width 1.750 mm Dimensions- height 2.700 mm Adjustable speed from 0 to 100 m/min Max. surmountable slope (unloaded) 16% Max. surmountable slope (loaded) 8% Front wheels 2 x ø 533 x 230 mm Rear driving wheel 2 x ø 457 x 180 mm Wheels material Cushion Drive FOUR WHEELS Total weight 8.300 Kg Electric motor power 8,0 KW / 48 cc. Hardened battery (standard) 560 Ah / 48V Battery charger on board 380 /440 V -50/60 Hz Lead acid battery

VIDEO

Catalogs

No catalogs are available for this product.

See all of Gruniverpal S.r.l.‘s catalogs

Other Gruniverpal S.r.l. products

gru mobile per la movimentazione di stampi
