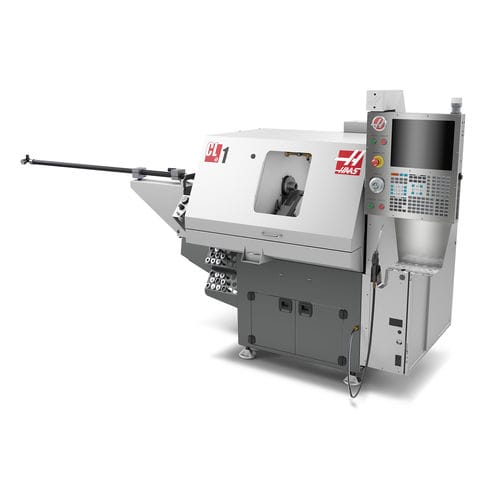

CNC lathe CL-1
horizontal2-axisfor small parts production

CNC lathe
CNC lathe
CNC lathe
CNC lathe
CNC lathe
CNC lathe
CNC lathe
CNC lathe
Add to favorites
Compare this product


Characteristics

Control type
CNC
Spindle orientation
horizontal
Number of axes
2-axis
Applications
for small parts production
Other characteristics
compact, with turret
Diameter

102 mm
(4.02 in)

Spindle speed

6,000 rpm
(37,699.112 rad.min-1)

Axe X

305 mm
(12 in)

Axe Z

203 mm
(8 in)

Rapids on X

19,200 mm/min
(13 in/s)

Rapids on Z

19,200 mm/min
(13 in/s)

Nominal power

3.7 kW
(5 hp)

Weight

1,017 kg
(2,242 lb)

Description

The innovative CL-1 is an ultra-compact CNC chucker lathe that comes standard with an 8-station automatic turret, making it ideal for dedicated small-part production, second-op parts, or short runs and prototyping small parts, such as those found in the communications, aerospace, medical, and dental industries. The CL-1 can be moved easily with a pallet jack or equipment dolly, and is small enough to fit into most freight elevators. Ultra-compact chucker lathe Operates on single- or three-phase power Can be moved easily with a pallet jack Easy access to tank and pump for cleaning out chips Made in the USA
