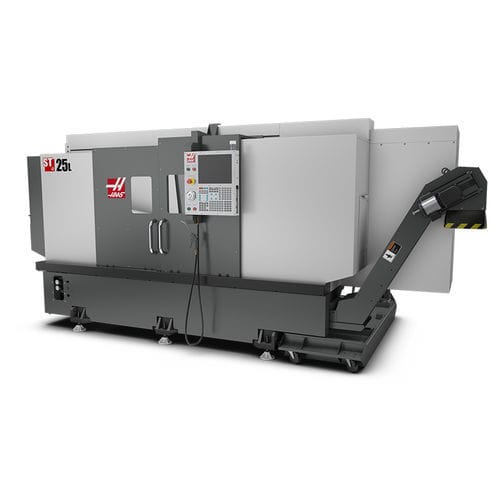

CNC turning center ST-25L2-axisA2-612 tools
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Number of axes
- 2-axis
- Spindle mount
- A2-6
- Number of tool stations
- 12 tools
- Other characteristics
- cutting, high-performance, compact, rigid, large
- Diameter
533 mm
(20.98 in)- Spindle speed
3,400 rpm
(21,362.83 rad.min-1)- Bar capacity
76 mm
(3 in)- Axe X
213 mm
(8 in)- Axe Z
1,080 mm
(43 in)- Rapids on X
24,000 mm/min
(16 in/s)- Rapids on Z
24,000 mm/min
(16 in/s)- Nominal power
22.4 kW
(30.5 hp)- Maximum torque
407 Nm
(300 ft.lb)
Description
The ST-25L provides roughly double the Z-axis travel and turning length of the standard ST-25 for machining longer parts, while maintaining superior cutting performance, and a compact footprint. The ST-25L is engineered from the ground up to create a rigid and high-performance machine.
Big-bore spindle
Extended Z-axis travel for machining longer parts
Standard programmable hydraulic tailstock with #4 Morse taper
New castings for increased rigidity and damping properties
Ergonomically designed for everyday operation
Extended tool pocket in the bulkhead provides clearance for long tools
Available Steady Rest Provision for part-face machining or supporting extra-long parts
Made in the USA
