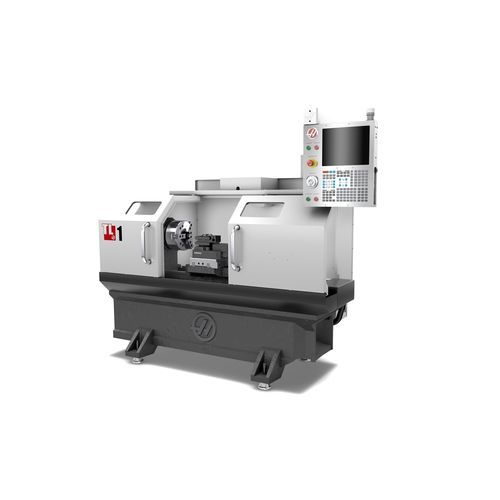

CNC lathe TL-1horizontal2-axisA2-5
Add to favorites
Compare this product
fo_shop_gate_exact_title
Characteristics
- Control type
- CNC
- Spindle orientation
- horizontal
- Number of axes
- 2-axis
- Spindle mount
- A2-5
- Performance
- precision
- Diameter
203 mm
(7.99 in)- Spindle speed
1,800 rpm
(11,309.734 rad.min-1)- Axe X
203 mm
(8 in)- Axe Z
762 mm
(30 in)- Rapids on X
11,400 mm/min
(7 in/s)- Rapids on Z
11,400 mm/min
(7 in/s)- Nominal power
7.5 kW
(10.2 hp)- Maximum torque
146 Nm
(108 ft.lb)- Weight
2,223 kg
(4,901 lb)
Description
The TL Series Toolroom Lathes are affordable, easy to use, and offer the precision control and flexibility of the Haas CNC system. The TL-1 is very easy to learn and operate – even without knowing G-code. It is the perfect machine for start-up shops, or as a first step into CNC machining.
Operates on single- or three-phase power
An affordable alternative to conventional lathes
Includes conversational programming system – no G-code knowledge required
An ideal machine for start-up shops, or as a first step into CNC machining
