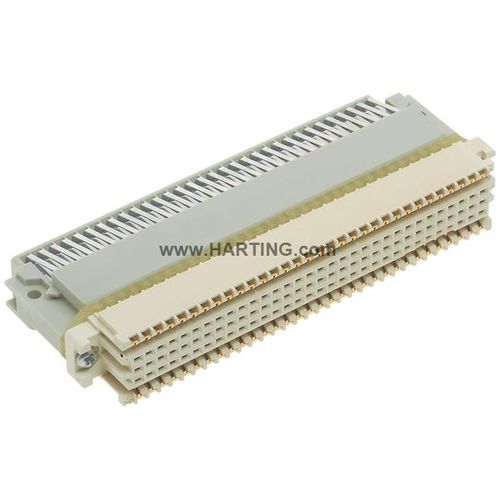

Data connector har-bus® 64

DINUSBPCB

Category Connectors Element Female connector Description of the contact Angled Features lead-free Termination method Wave soldering termination Connection type Extender card Number of contacts 160 Contact configuration Rows a, b, c, d and z, positions 1, 2, ... , 31, 32 PCB fixing With fixing flange Contact rows 5 Contact spacing (termination side) 2.54 mm Contact spacing (mating side) 2.54 mm Rated current ‌ 1 A Rated current Rated current measured at 20 °C, see derating curve for details Clearance distance ‌0.6 mm between 2 rows (a, b, c) ‌0.6 mm between 2 rows (d, z) ‌0.8 mm between 2 contacts in a row (a, b, c) ‌0.8 mm between 2 contacts in a row (d, z) Creepage distance ‌0.6 mm between 2 rows (a, b, c) ‌0.6 mm between 2 rows (d, z) ‌0.8 mm between 2 contacts in a row (a, b, c) ‌0.8 mm between 2 contacts in a row (d, z) Insulation resistance >1010 Ω Contact resistance ≤20 mΩ for rows a, b, c ≤30 mΩ for rows d, z Limiting temperature -55 ... +125 °C Insertion and withdrawal force ≤ 160 N Performance level 1 acc. to IEC 61076-4-113 Mating cycles ≥ 500 Test voltage U r.m.s. 1 kV Isolation group IIIa (175 ≤ CTI < 400) Hot plugging No Material (insert) Thermoplastic resin (PBT) Liquid crystal polymer (LCP) FR4 Colour (insert) RAL 7032 (pebble grey) Material (contacts) Copper alloy Surface (contacts) Noble metal over Ni Mating side Sn over Ni Termination side Material flammability class acc. to UL 94 V-0 RoHS compliant ELV status compliant China RoHS e REACH Annex XVII substances Not contained REACH ANNEX XIV substances Not contained REACH SVHC substances Not contained California Proposition 65 substances Yes
