Stepper motor driver
12 - 40 VDC | 40105 series
Haydon Kerk Motion Solutions

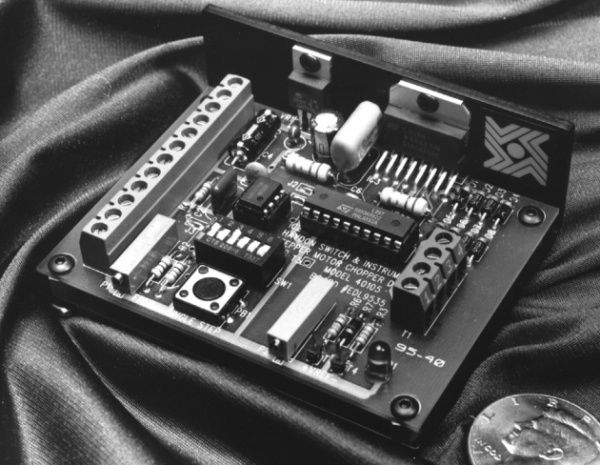

The Haydon™ bipolar chopper drive has been designed for easy set-up and use. It is ideal for development projects, just connect a single power supply and a motor and the drive is ready to run. Motor current is set using an on-board potentiometer. No external current setting resistors are required. This feature-packed drive provides all basic motor controls, including full or half stepping of bipolar steppers and direction control. An oscillator circuit is standard on the drive with an on-board speed control potentiometer. In addition, external input/output signals allow complete remote control of all drive functions.
