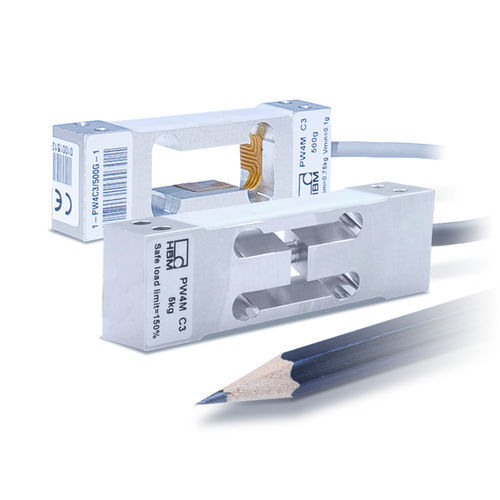

Beam type load cell PW4 series

single-pointstrain gaugeOIML

Precise Miniature Load Cells for Determining Small Masses The PW4M and PW4M-OP are compact and precise OIML-tested single point load cells. PW4M and PW4M-OP Single Point Load Cells for Precise Weighing of Masses from 300 g to 5 kg The small PW4M and PW4M-OP single point load cells are available in different options with maximum capacities ranging up to 5 kg. They offer extremely precise measurement results as well as an optimal price-to-performance ratio. Since they are approved in legal-for-trade applications and have an extremely high precision (accuracy class C3), these load cells are especially well-suited for batching, filling, and controlling tasks with small-sized packages, such as those used in the pharmaceutical, cosmetics, or food industries. The PW4M series is the only series of strain gauge-based single point load cells available with an OIML R60 test certificate for a maximum capacity of 300 g. Another special feature of the load cells is the PW4M-OP’s novel overload protection, which enables it to reliably withstand overloads of up to 10 times its maximum capacity. Accuracy Class: C3 according to OIML R60 Minimum verification interval: up to 0.05 g New variant available now: PW4M-OP with overload protection. High accuracy Load cells with accuracy class C3 according to OIML R60 Ratio of minimum verification interval Y=10,000 Very low temperature coefficient of zero point Off-center load compensation Precise weighing owing to strain-gauge technology and OIML certification Protected Design Aluminum measuring body with a silicone rubber cover Sheathed connection cable
