Transport test stand

tablepneumaticvertical

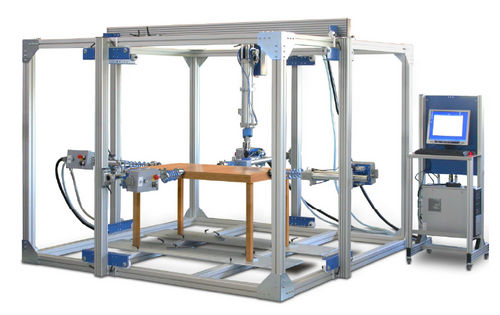

Displacement test rig for tables Displacement test rig for vertical and horizontal testing of tables and desks • - Displacement test rig for vertical and horizontal testing of tables according to EN527-3, EN581-2-3, EN1730, BIFMA X5.1 load or load/position controlle • - 4 test axes for horizontal table testing, 1 test axis for vertical table testingr • - the test axes each have their own controllers assembled in the immediate vicinity, which are operated from a PC via CAN-bus and work synchronised • - they are supplied via a central supply terminal, which can carry up to 5 pneumatic test axes • - Central supply terminal and PC can be positioned on a separate framework • - via a USB interface on the PC the data, control commands and software settings are transmitted via the central supply terminal to the pneumatic test axes • - part of the test stand is our extensive testing and evaluation software for the system software Windows 2000 or XP • - 1 Framework for supply terminal, PC, keyboard and screen, moveable
