bimetallic thermostat / preset
7AM, 17AM series Hengxin Precision Electrical Equipment

Add to MyDirectIndustry favorites

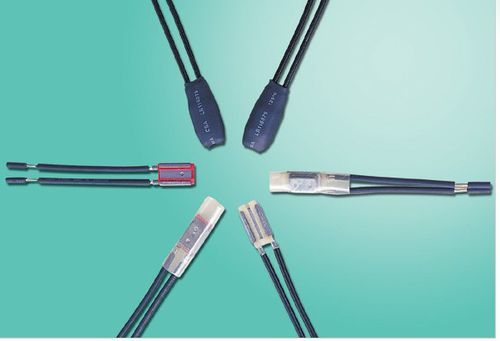

bimetallic thermostat / preset bimetallic thermostat / preset - 7AM, 17AM series
{{requestButtons}}

Characteristics

  • Type:

    bimetallic, preset

  • Temperature:

    Min.: 65 °C (149 °F)

    Max.: 160 °C (320 °F)

Description

APPLICATIONS:
The 7AM/17AM Series is a bimetallic thermostat. It is specifically designed for applications in motor, fluorescent lamp, floodlight, transformer ,diving pump, and clear machine. It is configured with micromation design, has an accurate action temperature and speed cut off power supply, with current and temperature dual protection, ensuring durability and efficiency during operation.

TECHNICAL PARAMETERS:
*It can generate with a rated voltage of 50/60 HZ, 250 V, AC ,
*It has nominal current of 8 A.
*Fixed break-off temperature scope: +65 ℃ ~+160 ℃, take 5 ℃ as a grade
*Resetting temperature : lower than rated open temperature 30℃(+/-)15℃

The product is UL, VDE, CSA and SGS certified.
