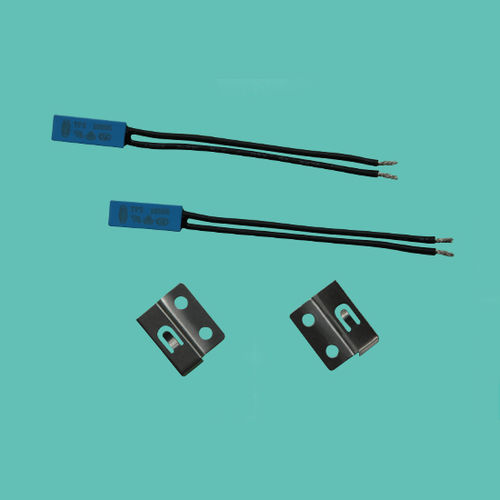

Bimetallic thermostat TP2 seriespresetminiature
Add to favorites
Compare this product
Characteristics
- Heating technology
- bimetallic
- Type
- preset
- Other characteristics
- miniature
- Temperature
Max.: 140 °C
(284 °F)Min.: 45 °C
(113 °F)
Description
APPLICATIONS:
The TP2 Series thermostat is a bimetallic thermostat, applies to the fractional horsepower motor, fluorescent ballasts, motor of washer, motor of air conditioner, transformers, lighting lamps, DC motor of automobile,
battery changer, household electric appliances, OA-machines etc.
TECHNICAL PARAMETERS:
*Rated voltage: AC 250V / 125V (50/60Hz)
*Rated current: 6A /12A
*Rated open temperature range: 45~140℃, in steps of 5℃
*Authentication certificate: UL, VDE
