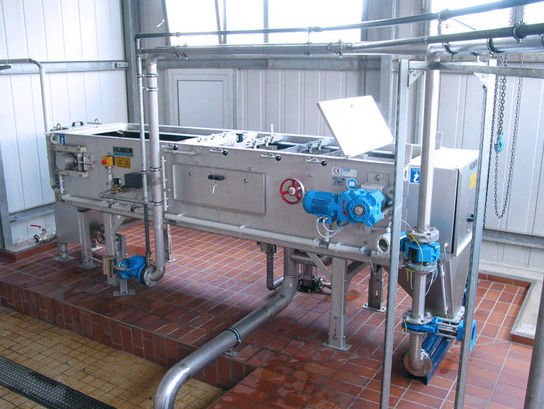

Belt thickener for sludge treatment
DB
Huber Technology
The trough-shaped design of the feed reactor ensures the optimal conditioning and uniform distribution of the sludge over the full width of the filter belt.

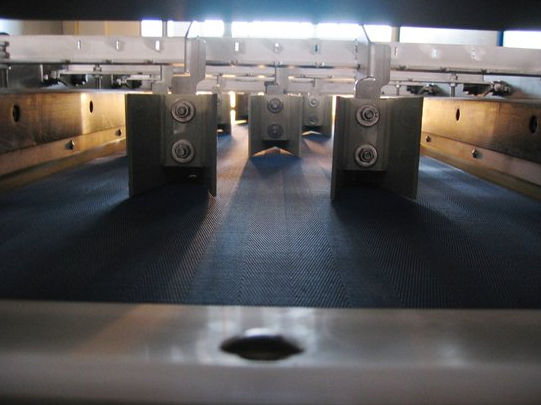

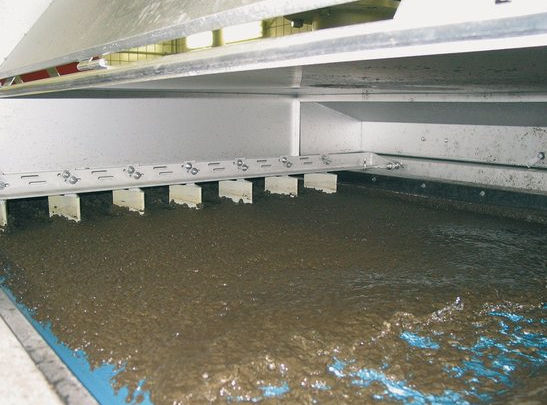

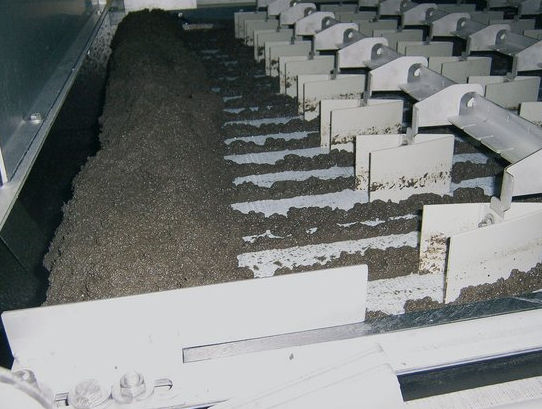

The filter belt is guided horizontally by a drive and a tensioning roller. Via a feed chute positioned above the tensioning roller the sludge is smoothly fed onto the filter belt and transported towards the sludge discharge point by the slowly travelling filter belt. The sludge flocks are then gently settling on the rotating filter cloth and the water separated by flocculation drains off by gravity. The sludge cake is taken off the filter belt by a plastic doctor blade mounted on the drive roller.
The filter belt is guided horizontally by a drive and a tensioning roller. Via a feed chute positioned above the tensioning roller the sludge is smoothly fed onto the filter belt and transported towards the sludge discharge point by the slowly travelling filter belt. The sludge flocks are then gently settling on the rotating filter cloth and the water separated by flocculation drains off by gravity. The sludge cake is taken off the filter belt by a plastic doctor blade mounted on the drive roller.
