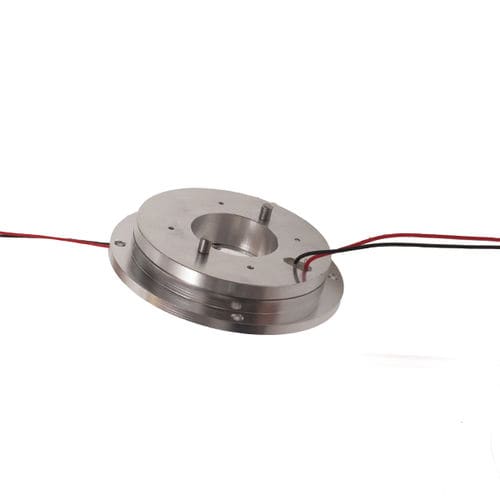

electric slip ring / pancake type / medical
LPK030-0204 JINPAT Electronics Co., Ltd.

{{requestButtons}}

Characteristics

  • Type:

    electric

  • Construction:

    pancake type

  • Applications:

    medical

  • Rotational speed:

    30 rpm (188 rad.min-1)

  • Current:

    10 A

  • Voltage:

    380 V

  • Number of contacts:

    6 unit

Description

Part Number: LPK030

2circuits

Current range: 2circuits*4A; Voltage of 50VDC;
Dielectric Strength: ≥300V@50Hz between circuits; Insulation of 200MΩ@500VDC
Dynamic Resistance Fluctuation Values: ≤70mΩ

Operating Speed:0~48rpm; Wire Size: AWG22# (0.35mm²) Teflon® UL;
Wire Length: stator (300mm), rotor(300mm); Inner Diameter: φ30mm
Precious metal contact; Aluminum alloy housing

Working Temperature: -20°C~+70°C; IP54
