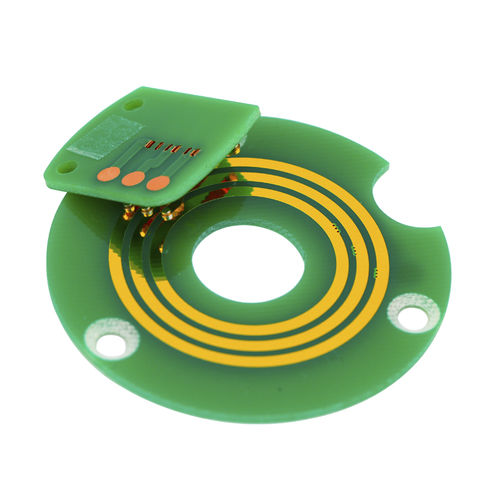

Pancake type slip ring LPKS014-0302metalrugged
Add to favorites
Compare this product
Characteristics
- Construction
- pancake type
- Material
- metal
- Other characteristics
- rugged
- Voltage
24 V
- Primary current
2 A
- Rotational speed
Max.: 50 rpm
(314 rad.min-1)Min.: 0 rpm
(0 rad.min-1)- Number of channels
Max.: 3 unit
Min.: 1 unit
Description
Part Number: LPK014-0302
3 circuits
Current Range: 3 circuits*2A; Voltage of 24 V;
Dielectric Strength: between circuits ≥100VDC@50Hz;
Insulation Resistance: 50MΩ@100VDC;
Operating Speed:0~50rpm;
Contact: Precious metal;
Housing: FR-4;
Inner Diameter: φ14mm;
Working Temperature: -20°C~+60°C; Up to 60%RH;
