Electric slip ring LPKS005-0405

pancake typeultra-flatfiberglass

Overview

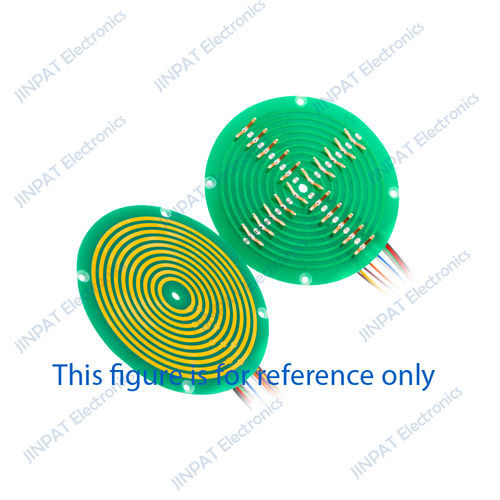

The LPKS005-0405 pancake slip ring is a compact, low-profile rotary electrical interface engineered to transfer power and data between stationary and rotating assemblies during continuous rotation. Its pancake form factor minimizes axial space and is suited to installations with limited clearance. The unit uses fiber-brush technology for maintenance-free operation and a modular architecture for configurable options.

Key features

• Transfers control, data and power lines.
• Fiber-brush technology for maintenance-free operation (no lubrication required).
• Modular design enabling standard and custom configurations.
• Customizable parameters to meet specific application requirements.

Technical table (summary)

• Circuits: Total 4 circuits.
• Current per circuit: 4 × 5 A.
• Working speed: 0–100 rpm.
• Inner diameter: Ø5.0 mm.
• Rated voltage: 240 V.
• Contact material: Precious metal.
• Dielectric strength: 300 VAC @ 50 Hz.
• Housing material: FR-4.
• Insulation resistance: ≥ 300 MΩ @ 300 VDC.
• Lead wire length: Stator 300 mm; Rotor 300 mm.
• Working temperature: -20 °C to +60 °C.
• Working humidity: ≤ 60% RH.
• Note: P = power, S = signal.

Optional / Customizable

• Inner diameter and outer diameter.
• Number of circuits.
• Current and voltage ratings per circuit.
• Lead wire length, lead material and color of connecting terminals.
• Shell options and protection grade.
• Capability to transmit both signal and power lines.

Technical specifications

• Model name: LPKS005-0405 (pancake slip ring, low-profile form factor).
• Number of circuits: 4.
• Current rating: 4 × 5 A (5 A per circuit).
• Rated voltage: 240 V.
• Inner diameter: Ø5.0 mm.
• Overall dimension: φ60 × 7 mm.
• Maximum working speed: 100 rpm.
• Contact material: Precious metal contacts.
• Dielectric strength: 300 VAC @ 50 Hz.
• Insulation resistance: ≥ 300 MΩ @ 300 VDC.
• Housing material: FR-4 (PCB material).
• Lead wires: Stator 300 mm, Rotor 300 mm.
• Operating temperature range: -20 °C to +60 °C.
• Operating humidity: ≤ 60% RH.
• Notes: P = power, S = signal. Modular and custom options available for diameters, circuits, current/voltage, lead length/material/color, shell and protection grade.
