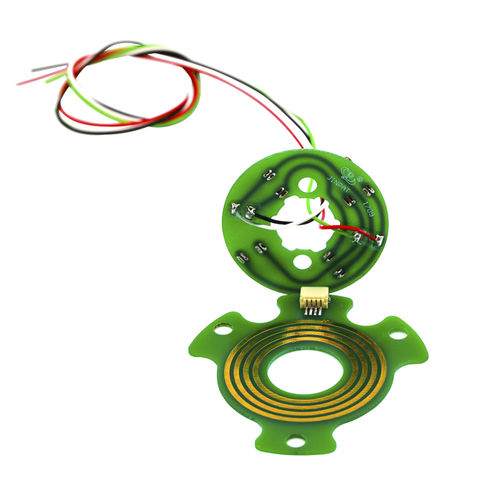

pancake type slip ring / metal / modular
LPKS013-0402 JINPAT Electronics Co., Ltd.

{{requestButtons}}

Characteristics

  • Construction:

    pancake type

  • Material:

    metal

  • Other characteristics:

    modular

  • Rotational speed:

    Min.: 0 rpm (0 rad.min-1)

    Max.: 60 rpm (377 rad.min-1)

  • Current:

    2 A

  • Voltage:

    20 V

  • Number of contacts:

    Min.: 1 unit

    Max.: 4 unit

Description

Part Number: LPKS013-0402

4 circuits

Current Range: 4 circuits*2A;
Voltage of 20 V;
Dielectric Strength: between circuits ≥300V@50Hz;
Insulation Resistance: 10MΩ@300VDC;

Operating Speed:0~60rpm;
Wire Length: stator (250mm);
Contact: Precious metal;
Housing: FR-4;
Inner Diameter: φ13mm;

Working Temperature: -15°C~+45°C; Up to 60%RH;
