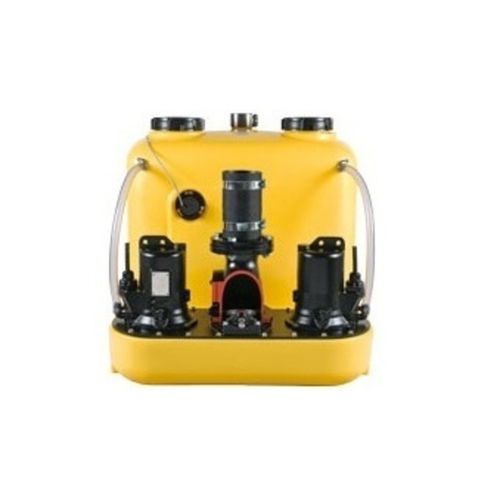

Sewage lifting unit COMPLI 1200 HL series

Duplex lifting station for several residential units with a storage volume of approx. 350 litres Areas of application: Commercial enterprises, hospitals, hotels or apartment buildings 5-year warranty for specialist tradesmen when registered at www.hauptsachejung.de/en Made in Germany With modern HighLogo microprocessor control unit Ready to connect Submersible Height-variable inlet Duplex swing-type check valve PE-tank 350 l Smart home compatible With their performance graduations, the Compli 1200 lifting stations has been designed for larger storage capacities, if wastewater of several residential units or wastewater from commercial enterprises, for example, have to be disposed of. During the design work, special attention was given to easy handling, space-saving and uncomplicated installation. A fitting (to be provided by the customer) can be used at the rear inlet port of the stage housing to mount the unit variably in height (560 to 700 mm) as well as capable of rotating (180 °). The submergible unit is permitted for general use in areas subject to flooding without requiring additional outlay. The control unit has to be fitted in a well ventilated flood-proof room. The construction with PE tank has freely accessible drains and a clamp-type inlet flange for easy installation. The top-mounted cleaning opening and the easy replaceability of the pre-mounted pumps also ensure time-saving servicing. Duplex systems have two pump units on one tank which are switched alternately or, if required, they are operated both in order to cope with peak load or reserve operation.
