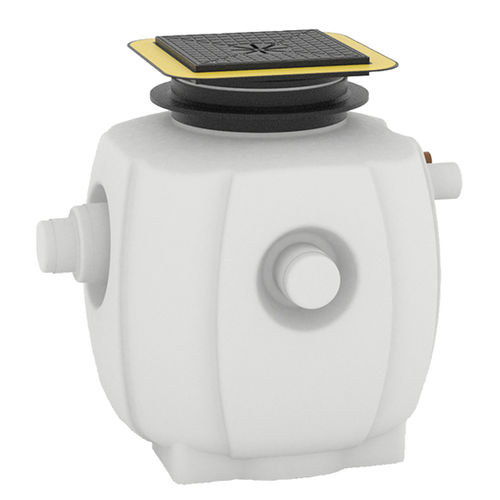

Sewage lifting unit Baufix 200 series

Pressure stabilizer sump Single- or duplex unit Floor drain with odour trap Level-compensating frame Seal collar for attaching to the customer's thin-bed waterproofing system Use in groundwater areas possible Guide rail system GR 32 or GR 50 possible Baufix 200 is for bigger domestic wastewater volume and larger storage capacity. Without requiring a great deal of construction work, it disposes of domestic wastewater from laundries, storage or cellar areas. Baufix 200 can be installed as a single as well as duplex system. The required components for the installation of the pump are part of the scope of supply. The duplex system provides bigger security in the disposal in wastewater. In normal operation the two pumps operate alternately or at the same time to cope with peak load. If the system is to be operated as a single system, a pump with a built-in level control must be selected. The pump to be placed can be selected according to the amount of wastewater. The dirty water to be transported and the pumping power required have to be taken into consideration in particular. In case of slightly dirty water, pumps U3K, U5K or U6K E+D can be used. If the admixtures are larger or the volume of wastewater is bigger, the use of a pump of the US series is recommendable. Pumps US 73+103 Ex are used in hazardous areas. In case of commercial applications, the resistance of the materials have to be tested in advance. Depending on the type of pump used, the Hebefix 200-32 with 1¼“ or the Hebefix 200-50 with 2“ discharge branch has to be chosen.
