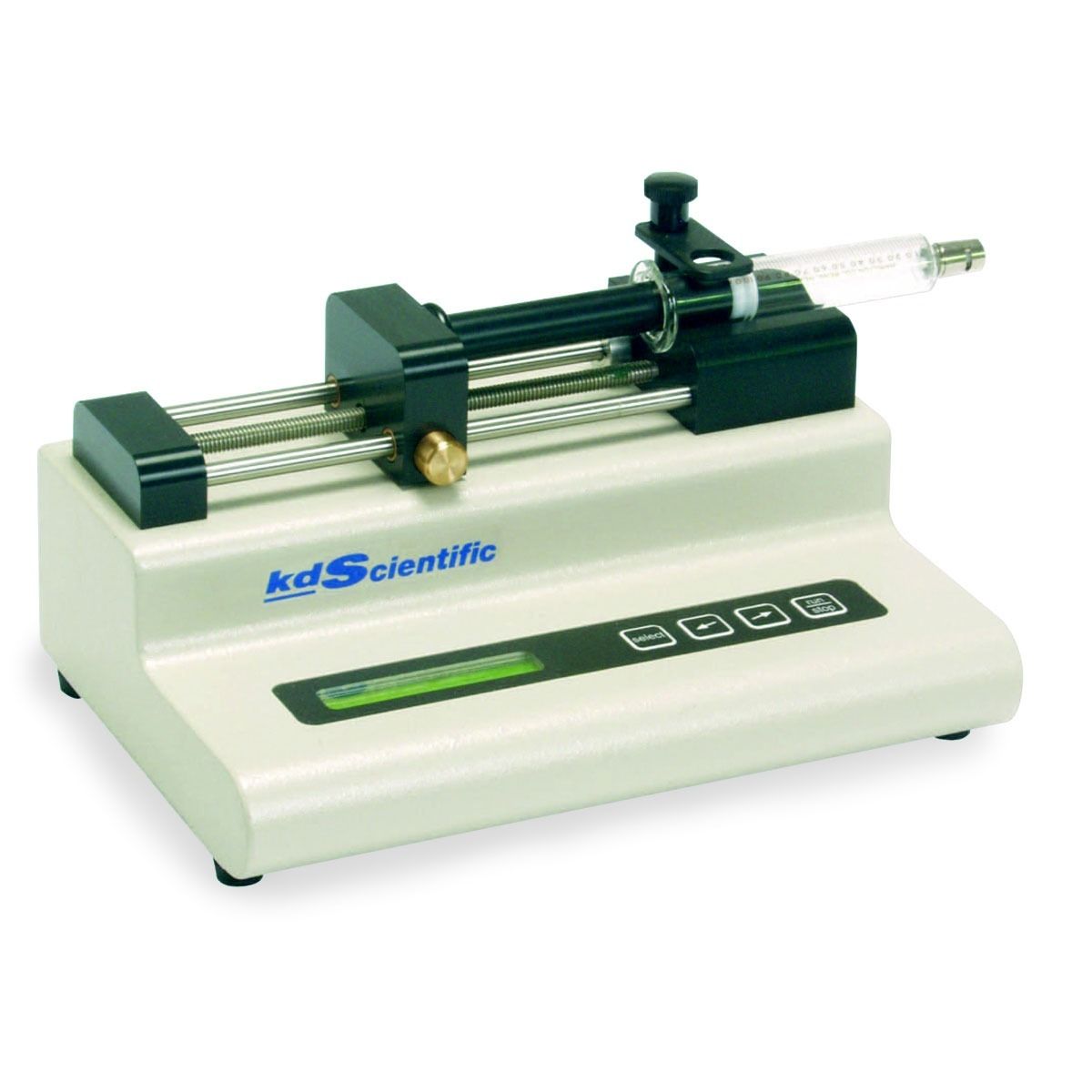

Infusion syringe pump for laboratory use
0.01 - 60 ml | KDS 100 / 100L / 100Y KDS

KDS100:
A basic single syringe, infusion pump which combines precision with simplicity.

Features

- Single syringe 10 µl to 60 ml, any manufacturer
- Simple menu-driven setup:
- select syringe size from displayed table
- set dispense volume
- set dispense flow rate
- Easy to read bright, backlight display
- Dispense volume displayed and has automatic shutoff at completion
- Volume and flow rate units (µl/hr or ml/hr) are selected automatically based on syringe size
- Last settings stored in permanent memory
- Button release of drive nut for easy syringe installation
- Choice of run / stop after a power interruption

KDS 100L:

The KDS 100 is now available with an optional LED to indicate the pump is on or running. This feature is ideal to get a quick indication if the pump is dispensing, especially if multiple pumps are in operation.
Also available 101L, 120L 310L

KDS100Y:

A new version of the rugged KDS 100 can now be remotely triggered with a footswitch or external switch. Starting and stopping dispense or infusion can be automated or remotely activated.
Also Available: 101Y, 120Y, 310Y
