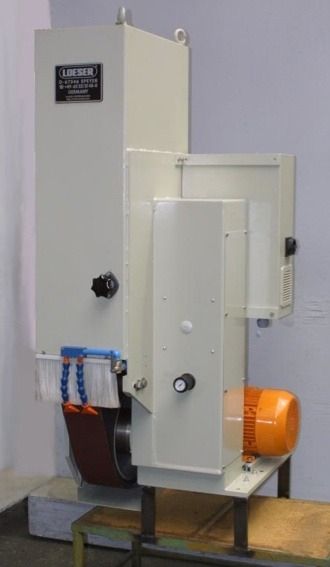

Roll grinding meter and grinder for rolling mill
3500 x 150 mm | SP 380 LOESER GmbH

SP 380

* to mount to a lathe or grinding machine

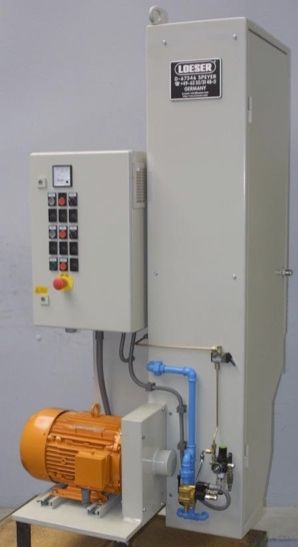

* for wet grinding operation with piping installed and special
electrics
* for use with grinding belts or
polishing wheels
* brushing, deburring, grinding,
polishing, buffing, satin finishing

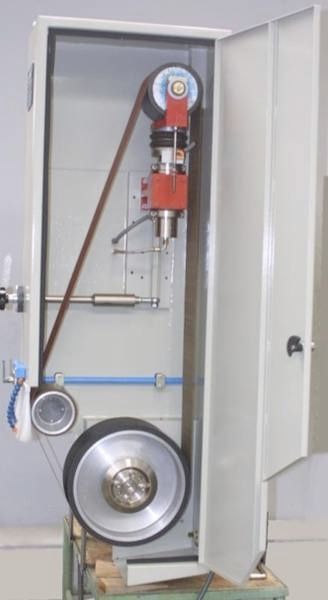

* free belt grinding system installed
* for all lathe and grinding machines suitable
* fixed grinding head
* optional pressure controlled servo slides available

Technical Data:
Beltdimension: 3.500 x 150 mm
Spindle drive: 11 KW optional more , 1.500 U/min
Cutting speed: 32 m/sec.
Contact wheel dimension:
dia 400 mm x max.150 mm wide
Belt guard with dust funnel for dry operation
Weight: approx. 350 kg
Dimensions:
hight 1.900 mm x width 900 mm x long 750 mm
Voltage: Standard 400 V optional other voltage
Color: RAL 7032
motorized slide for large diameter adjustment
* manual positioning by push button or automatic by sensor drive
* additional pressure controlled quick lift system for the station
* grinding pressure adjustable
* slide movement 230 mm optional more
* slide dimension 700 mm long x 100 mm hight x 400 mm width
