Workpiece dimensions:
Diameter: 50 mm – 400 mm
Length:200 mm – 5500 mm
Technical data :

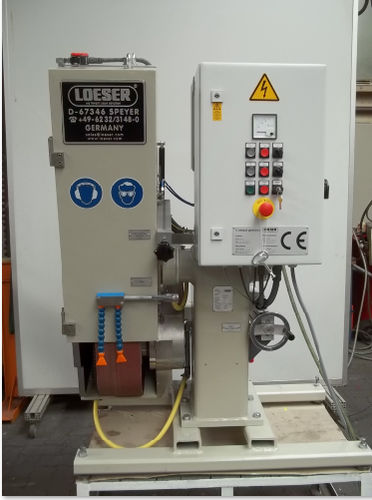

Grinding station SP 374:
main drive 7,5 HP
constant grinding pressure control via pneumatic cylinder
contact wheel 400 x 150 mm
belt dimension 2.500 x 150 mm
cutting speed 30 m/sec
dust funnel150 mm dia
belt tensioning via pneumatic
for grinding with belt and bonded wheels, brushing, satin finishing, polishing
for wet and dry grinding with water collecting and filtation system via paper filter
PLC control with Siemens S7
Highly efficient grinding operation for large and heavy products which are difficult to clamp between centres or can not be treated centreless.
The parts rest on driven rolls which give precise rotation during the grinding process without the time consuming clamping process.
