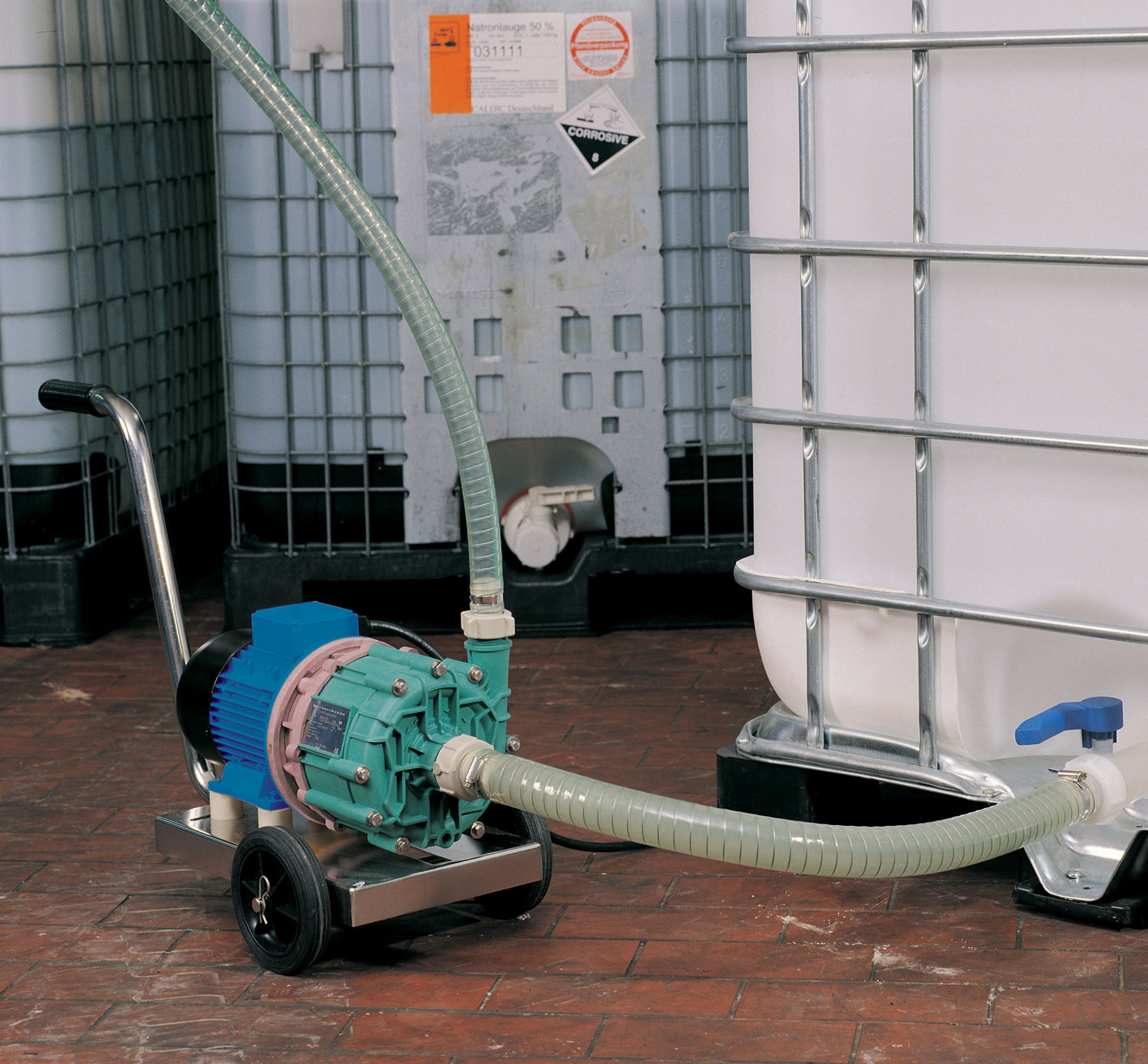

Magnetic drive centrifugal pump
max. 30 m³/h | TMR G2 series Lutz Pumpen GmbH

Fields of application:
Designed for medium to high pump capacities

Features:
- Driven by magnetic coupling with magnetic self-alignment system
- Pump capacity up to 30 m³/h and 30 m delivery head
- Covers densities up to 1.8 kg/dm3 and viscosities up to 150 mPas
- Volute casing material PP (GF) or ECTFE (CF)
- Connections in BSP/NPT thread or ISO/ANSI-flange
- Explosion-proof version GX in compliance with ATEX Directive 94/9/EC, category 2

Bearing system:
"R" (HD carbon) designed for dry running
"X" (silicon carbide) adequate for solids
"N" (Rulon®) corossion resistant
