- Hydraulics - Pneumatics
- Pump
- Centrifugal pump
- Lutz Pumpen GmbH | Lutz-Jesco GmbH
Centrifugal pump AM seriesfor solventsfor alkaliselectric
Add to favorites
Compare this product
Characteristics
- Technology
- centrifugal
- Fluid
- for solvents, for alkalis
- Operation
- electric
- Priming
- self-priming
- Mobility
- stationary
- Domain
- industrial, chemistry, for the petrochemical industry, for the metallurgical industry, for the printing industry, for the automotive industry, for machine tools
- Applications
- transfer, drum, drain
- Material
- polypropylene
- Fluid specification
- for aggressive media, for corrosive fluids, for toxic fluids
- Other characteristics
- compact, horizontal mount
- Flow
Max.: 200 l/min
(52.83441 us gal/min)Min.: 0 l/min
(0 us gal/min)- Head
Max.: 12 m
(39'04" )Min.: 0 m
(0'00" )
Description

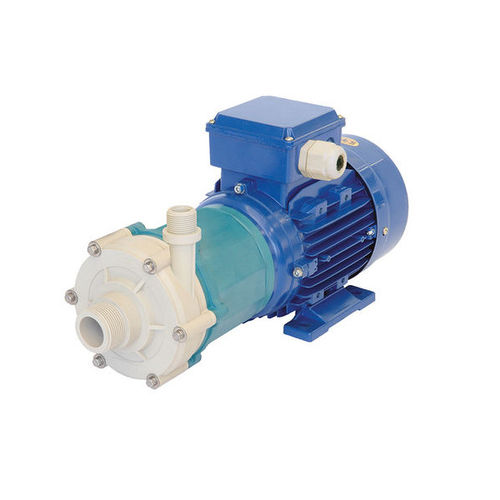

Horizontal mount pump - AM series
The AM series was specially developed for for the medium performance segment in plant and apparatus engineering. High-quality housing and bearing materials enable adaptation to almost any conveying task as required.
* Drive is via a magnetic coupling
* Examples of applications: Acids, alkalis, acid and alkali mixtures, solvents, alkaline
degreasing baths, electroplating baths, photographic chemicals
Features & Advantages
* Variable connection options
* Compact dimensions, performance in line with requirements
* Also for liquids with high density
* Version "R" conditionally suitable for dry running
* Motor and pump are mechanically separated
* Connections with BSP thread or hose nozzle
