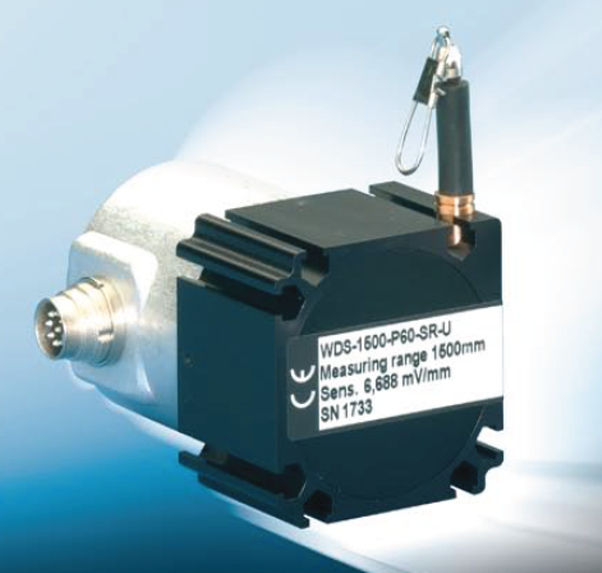

Draw-wire displacement sensor wireSENSOR WDS-P60potentiometerEtherCATSSI
Add to favorites
Compare this product
Characteristics
- Type
- draw-wire
- Technology
- potentiometer
- Output signal
- analog output, digital output, with potentiometric output, Ethernet, SSI, CANopen, EtherCAT, ProfiNet, PROFIBUS
- Measurement object
- metal, transparent, reflecting, organic
- Protection class
- IP65
- Applications
- industrial, OEM applications, rugged, for general purposes, for small spaces
- Other characteristics
- compact, rugged, precision, stainless steel, with incremental rotating encoder, rectangular
- Measuring range
Min.: 100 mm
(3.94 in)Max.: 1,500 mm
(59.06 in)- Linearity
Min.: 0.02 %
Max.: 0.5 %
- Ambient temperature
Min.: -20 °C
(-4 °F)Max.: 80 °C
(176 °F)
Description
The P60 and P96 Series are composed of draw wire sensors for general purposes. They come with many options like different kinds of analog outputs and measuring ranges to cater virtually all applications. The measuring ranges include 100mm, 150mm, 300mm, 500mm, 750mm, 1000mm, 1500mm, 2000mm and 2500mm while the linearity can reach at most 0.5 mm. The signal output may either be potentiometer, voltage or current.
